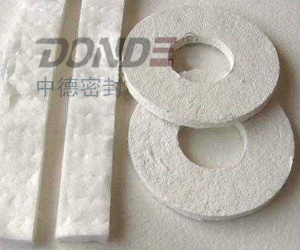

Heat Insulation Gasket
Item No.:ZD-G2081
Description:
Made from ceramic fiber paper.It could be cut into suitable shapes.
Heat Insulation Gaskets are appropriate when
an inexpensive heat seal is required. Only used where sealing pressures
are low, it happily operates in areas where temperatures are in excess
of 1472 F. It is soft and can be easily laminated to form thicker seals,
hence flange finish is not particularly important when using this
material.
Comressive trength:0.38Mpa
Thickness:0.5-6mm
Application:Used mainly as high
temperature insulation for sensitive apparatus it has good dielectric
strength and so is often used as an electrical insulation. Usually
supplied with an organic binder to improve it's tensile strength.
Tipical applications:
Insulationg and sealing pat;
Insulating for electric apparatus;
Muffler of car;
Aliminating voice and insulation for vent
pipe;
Materials for hot filtration;
Instead of asbestos paper;
Internal and external lining for furnace and
kilns and heating device;
Joint sealing and filling insulation(kiln
car,pipeline,kiln door and so on).
Warning: Gasket
materials should never be recommended when both the temperature and the
pressure are at the maximums listed. Properties and applications shown
are typical. No application should be undertaken by anyone without
independent study and evaluation for suitability. Never use more than
one gasket in one flange joint, and never reuse a gasket. Improper use
or gasket selection could cause property damage and/or serious personal
injury. The data reported is a compilation of field testing, field
service reports and/or in-house testing. While the utmost care has gone
into publishing the information contained herein, we assume no
responsibility for errors. The information and specifications
contained in this website are subject to change without notice. This
revision cancels and obsoletes all previous editions.
