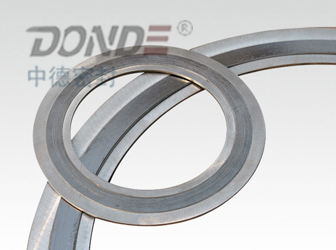

410 Spiral Wound Gaskets
Item No.:ZD-G1202/410
Description: Alloy 410 is a harden, straight-chromium stainless steel with combines the supperior wear resistance of high carbon alloys with the excellent corrosion resistance of chromium stainless steels. This alloy is used where strength, hardness, and wear resistance must be combined with corrosion resistance.
Chemical Composition:
|
Carbon |
Manganese |
Silicon |
Chromium |
Nickel |
Sulfur |
Phosphorus |
|
0.15max |
1.00max |
1.00max |
11.50~13.5 |
0.50max |
0.03max |
0.04max |
Mechanical Properties:
|
0.2% Offset Yield Strength (Mpa) |
Tensile Strength (MPa) |
Elongation |
Hardening Response HRC |
|
290 |
510 |
34 |
38~45 |
Physical
Properties:
Density: 0.276lbs/in3
Melting Range: 1482 ~ 1532 oC
Corrosion
Resistance:
Alloy 410 exhibits good
corrosion resistance to
atmospheric corrosion, potable
water, and to mildly corrosion
chemical environments because of
its ability to form a tightly
adherent oxide film which
protects its surface from
further attack.
Alloy 410 have good corrosion
resistance to low concentrations
of mild organic and mineral
acids.
