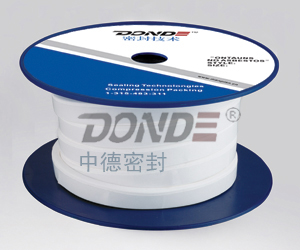

Expanded PTFE Joint Sealant
Item No.:ZD-T1000
Description:ZD-T1000
expanded
PTFE joint sealant is made from 100% pure PTFE.It has excellent
anti-acid & anti-alkalis.It has well-done tensile strength recovery.
Especially, Expanded PTFE joint sealant is used in sealing of food,
drink,chemical etc. Unneed to make gasket, expanded PTFE joint sealant
can be used easily.
Main Specification：
|
Pressure |
>=6.3Mpa |
|
Temperature |
≦=<280
℃
|
|
PH |
0-14 |
|
Density |
0.6～0.8 g/cm3
|
Common Size of
Expanded PTFE Joint Sealant：
|
Wideth |
3mm-100mm |
|
Thickness |
1.5mm-10mm |
|
Length |
5mm-50m |
|
special size can be made as request. |
For more information,please contact with
us directly,thanks！
Parameter:
|
Thickness(mm) |
Width(mm) |
Length(m) |
|
3.0 |
1.5 |
30 |
|
3.0 |
2.0 |
30 |
|
4.0 |
2.0 |
20 |
|
5.0 |
2.0 |
20 |
|
5.0 |
2.5 |
20 |
|
5.0 |
3.0 |
20 |
|
6.0 |
2.5 |
25 |
|
6.0 |
3.0 |
15 |
|
7.0 |
2.5 |
15 |
|
7.0 |
3.0 |
15 |
|
8.0 |
3.0 |
15 |
|
8.0 |
3.5 |
15 |
|
9.0 |
3.0 |
15 |
|
9.0 |
4.0 |
10 |
|
10 |
3.0 |
10 |
|
10 |
3.5 |
10 |
|
10 |
4.0 |
10 |
|
12 |
4.0 |
8 |
|
13 |
5.0 |
10 |
|
14 |
5.0 |
5 |
|
15 |
3.0 |
5 |
|
16 |
3.0 |
5 |
|
16 |
5.0 |
5 |
|
17 |
6.0 |
5 |
|
19 |
3.0 |
5 |
|
20 |
3.0 |
5 |
|
20 |
5.0 |
5 |
|
20 |
7.0 |
5 |
|
22 |
5.0 |
5 |
|
25 |
5.0 |
5 |
|
25 |
10 |
5 |
|
28 |
5.0 |
5 |
|
30 |
3.0 |
5 |
|
30 |
4.0 |
5 |
|
30 |
5.0 |
5 |
|
35 |
3.0 |
5 |
|
35 |
4.0 |
5 |
|
40 |
3.0 |
5 |
|
40 |
4.0 |
5 |
|
45 |
3.0 |
5 |
|
50 |
3.0 |
5 |
|
50 |
5.0 |
5 |
