Gland Packing for Tanker Container
Item No.:ZD-P1023T

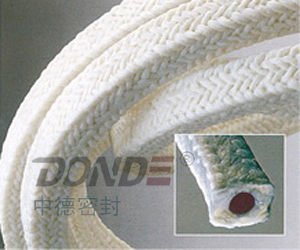

Description:A
resilient
elastomeric core, spirally wrapped with PTFE tape and surrounded with
successive braided jackets of inert acrylic yarn. Specially reinforced
corners are incorporated to build the section to the required packing
size.The braided structure is spirally wrappedwith further layers of
PTFE tape to provide an impermeable barrier to liquids andgases, then
finally enclosed in a robust,resistant braid of PTFE yarns.
Typical
Applications:Sealing
of tank lids, main hatches,inspection and cleaning covers on tankers
carrying all known bulk liquid cargoes in all International Maritime
Organisation (IMO) classes.
Prime
features:Gas-tight
environmental seal.
Protects cargo from sea water ingress.Withstands repeated
opening/closing cycles.Unaffected by steam and other tank cleaning
systems.
Main Specification(Static
duties — tank lids):
|
Temperature |
-100℃-+250℃ |
|
Maximum tank pressure |
70kPa/0.7bar |
|
PH range |
0-14 |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
High Temperature and High Pressure Flange
Sealing Packing |
ZD-P1010T |
|
Special Packing For High Pressure Steam
Pump |
ZD-P1011T |
|
Reciprocating Pump Gland Packing |
ZD-P1020T |
|
Abrasion Resistant Gland Packing |
ZD-P1021T |
|
Special Packing for Food and Pharmacy
Industry |
ZD-P1022T |
|
Gland Packing for Tanker Container |
ZD-P1041T |
For more information,please contact with
us directly,thanks！
|
