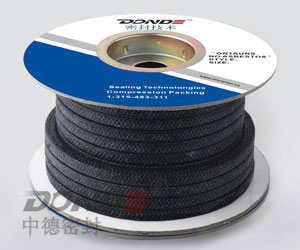

Carbonized
Fibre Braided Packing With Graphite
Item No.:ZD-P1301
Description:Carbonized
PAN fiber impregnated with PTFE dispersion containing graphite
particles, PTFE and graphite makes the packing have excellent self
lubrication.
Application:
Carbonized
Fibre Braided Packing With Graphite
can be used in weak acids and alkalis or media containing few grains
of solid particles, both dynamic and static, mainly used for
centrifugal pumps, plunger pumps, mixers and valves.
Without cooling it can be used with hot
water up to 160°C , with cooling it can be used with hot water up to
207°C. Particularly ideal for hot water, condensate and main coolant
pumps
ZD-P1301R Carbonized Fiber Packing
Reinforced with Nickel wire
The wire reinforcement provides
increased mechanical strength, usually for static.
Main Specification:
|
Temperature |
250℃ |
|
Pressure |
2-20MPa |
|
PH Range |
2-12 |
|
Linear Speed |
2-16M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Carbonized Fibre Braided Packing |
ZD-P1300 |
|
Carbonized
Fibre Braided Packing With Graphite |
ZD-P1301 |
|
High Strength
Carbon Fibre Brainded Packing |
ZD-P1310 |
|
Carbon
Fibre Packing With Graphite Impregnated |
ZD-P1311 |
|
Carbon
Fibre Packing Aramide Corner |
ZD-P1312 |
|
PTFE Fibre Braided
Packing With Carbon Fiber Corner |
ZD-P1350 |
For more information,please contact with
us directly,thanks！
|
