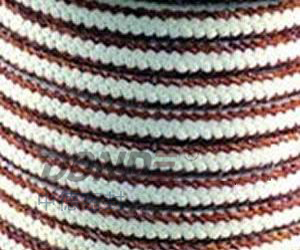

PTFE Packing with Kynol fiber corners
Item No.:ZD-P1205
Description:PTFE
packing with kynol fibre corner is contains the advantage both PTFE and
Kynol.PTFE
packing with kynol fibre corner is high performance packing that is well
suited to applications where graphite impregnation may not be
acceptable. Suitable for abrasive media, and where contamination is not
permitted. It has multiple uses in chemical plants and pulp and paper
mills, and is regularly used in rotating and reciprocating pumps, washer
journals, liquor pumps, refiners and digesters.
Main Specification:
|
Temperature |
-180℃~+260℃ |
|
Pressure |
20bar(revolving)
100bar(reciprocating) 200bar(flange) |
|
PH Range |
1-13 |
|
Linear Speed |
20m/s(revolving)
1.5m/s(reciprocating) 2m/s(flange) |
|
Density |
appr 1.5g/cm3 |
|
Size |
3*3mm-60*60mm（or as request） |
How to order：
|
Item |
Order Code |
|
Pure PTFE Fibre Braided Packing |
ZD-P1200 |
|
PTFE Fibre Packing With Lubrication |
ZD-P1201 |
|
Mutiple PTFE Filament Packing |
ZD-P1202 |
|
TFE
Packing With Silicon Rubber Core
|
ZD-P1203 |
|
PTFE
Packing With Kevlar Fibre Corner |
ZD-P1204 |
|
PTFE Packing with Kynol fiber
corners |
ZD-P1205 |
For more information,please contact with us
directly,thanks！
|
